Dice Pistol - Shell Ejecting Dice Launcher [.stl]
Dice Pistol - Shell Ejecting Dice Launcher [.stl]
by pixelcadet
Couldn't load pickup availability
[3D PRINTABLE FILES ONLY]

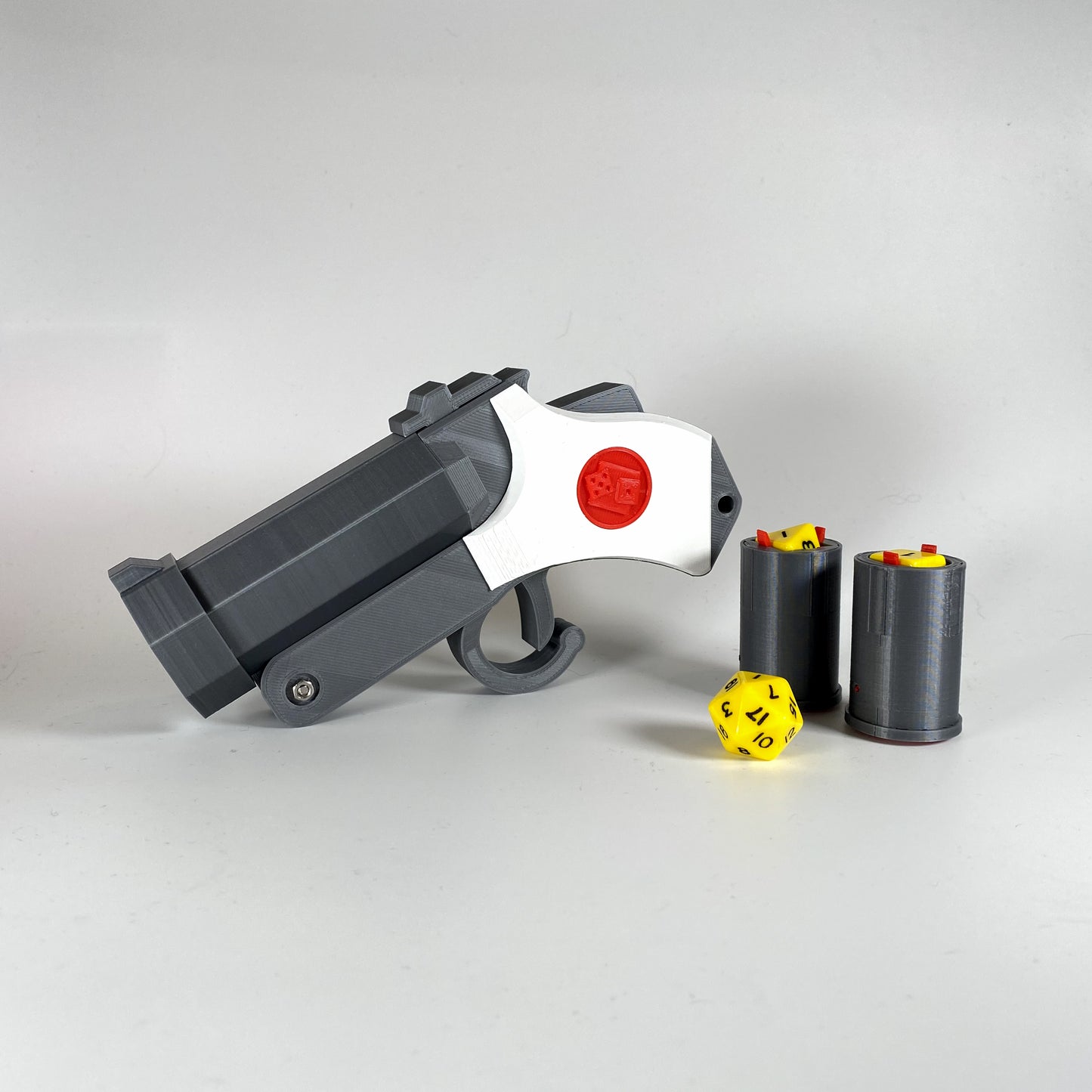

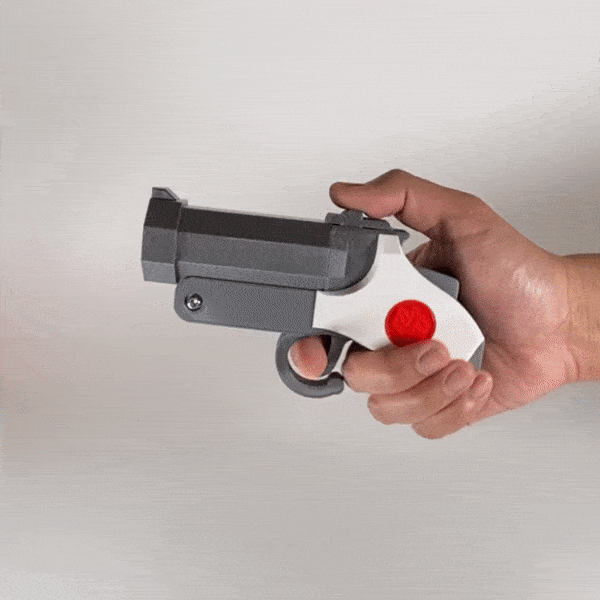

Roll your dice with a bang, with the Dice Pistol!
Gun build instruction video
Dice shell V1 build instruction video
Dice shell V2 build instruction video

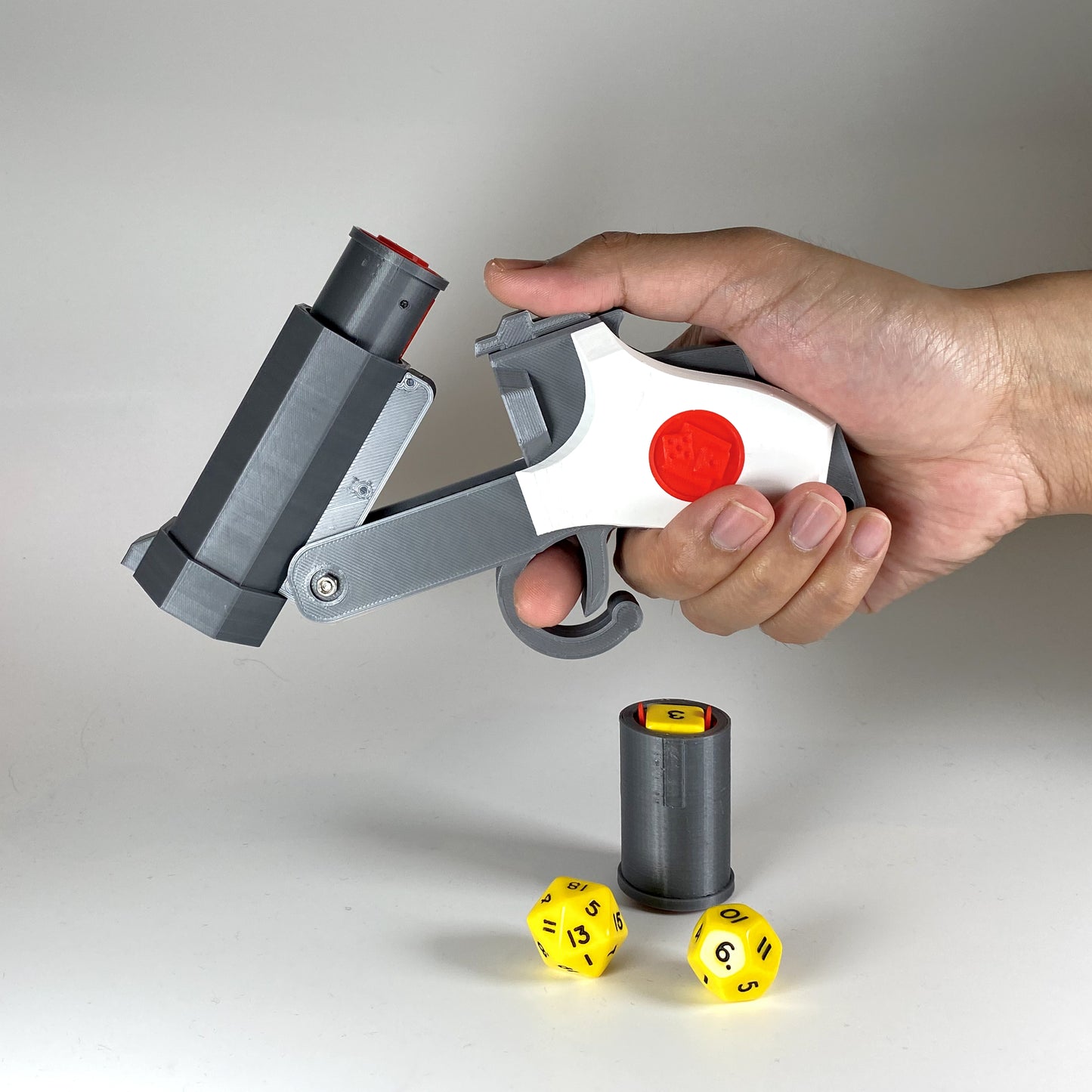

The dice pistol is perfect for RPG sessions like Dungeons & Dragons and Pathfinder, especially if you play as an Artificer or Gunslinger. You can also preload different types of dice into the dice shell, and when it's time for you to roll the dice, you just need to load it into the pistol and shoot your dice away.

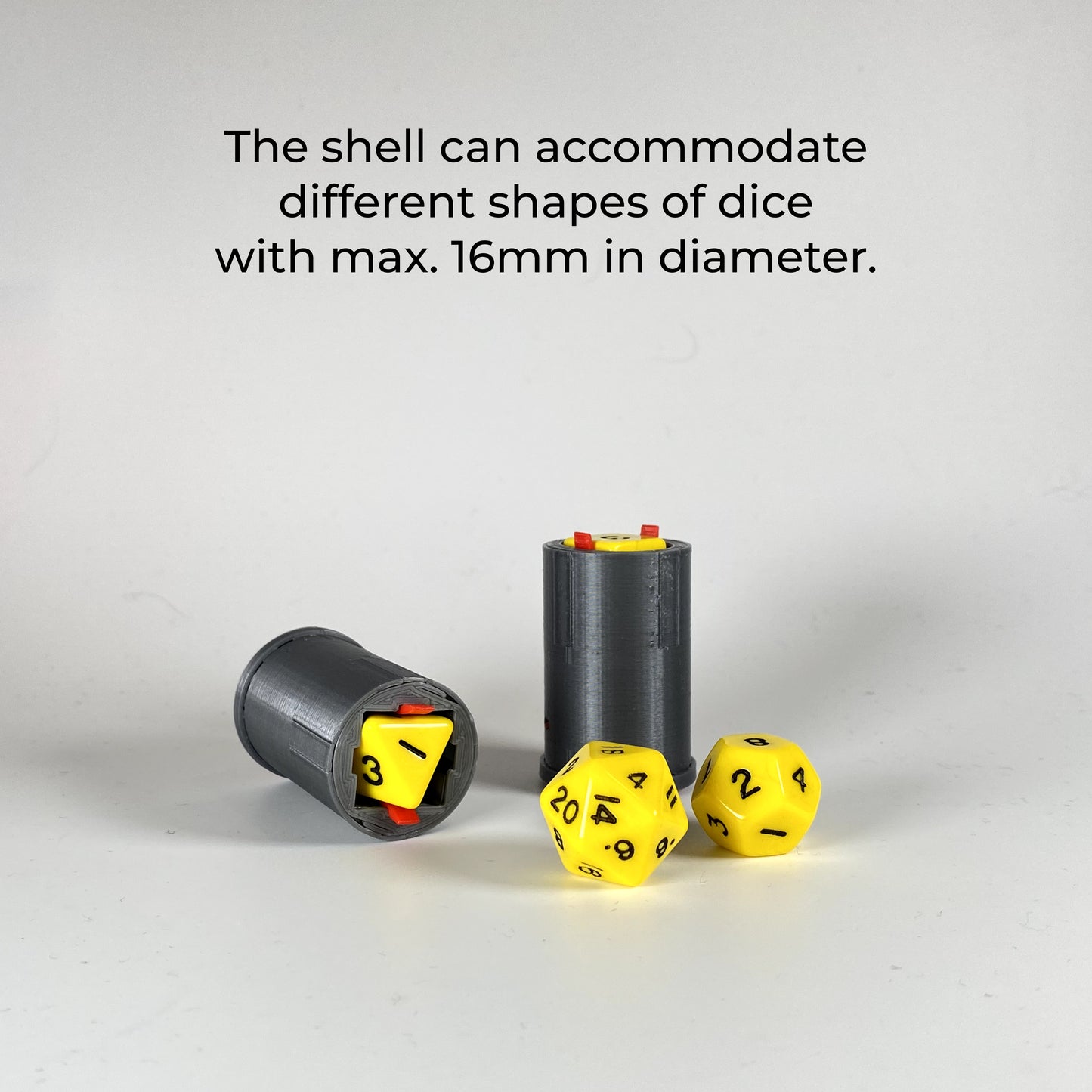

The dice shell can accommodate different types of dice (D4, D6, D8, D10, D12, D20) with a maximum diameter of 16mm. There are detachable arms in different sizes that can hold your dice securely in the shell.
With the current build, the shell can only house the gem/crystal shaped D4, and it cannot house the pyramid/tetrahedron shaped one.
WARNING: To avoid injuries, do not point projectiles at people or animals. Use at your own risk.
To assemble you need the following:
- 4x 20mm M3 screws
- 4x M3 nuts
- 5.5mm x 13mm compression spring (for trigger lock)
- 5.5mm x 9mm compression spring (for barrel latch)
- 1.75mm filament (to use as dowel for smaller holes)
- rubber bands (preferably small rubber band for hair)
- all purpose adhesive
3D Printing settings:
- Support: YES (except for Dice Shell v2)
- Infill: 20%/100% (print according to the folder instruction)
- Layer height: 0.2mm
This design (like all Pixelcadet designs) is under copyright. Which means, upon purchase, you do NOT have the right to sell commercially.
If you would like to legally sell them commercially, please join my Patreon and subscribe to the Merchant Tier. The digital files are never to be re-sold, shared, or given away.
